How to Use WiFi Analyzers for Better Channel Selection
Optimize your WiFi performance by selecting the best channels using analyzers to reduce interference and improve connectivity.
Identify and fix WiFi channel overlap: symptoms, causes, and practical steps like using analyzers, choosing non-overlapping channels, adjusting power/width, or upgrading bands.
WiFi channel overlap is a common issue that can slow down your internet, even with a strong signal. It happens when multiple devices or networks use the same or overlapping frequency ranges, causing interference. This is especially problematic in crowded areas like apartments or offices. Here’s what you need to know:
- 2.4 GHz Band: Only 3 non-overlapping channels (1, 6, 11). High interference risk.
- 5 GHz Band: Offers up to 25 non-overlapping channels. Less interference.
- 6 GHz Band: With WiFi 6E and 7, it provides 59 non-overlapping channels, minimizing interference.
Key Signs of Channel Overlap:
- Slow speeds despite strong signal bars.
- Connection drops or buffering during peak hours.
- High channel usage and packet collisions.
Quick Fixes:
- Use a WiFi analyzer to identify less crowded channels.
- Switch to non-overlapping channels (1, 6, 11 for 2.4 GHz).
- Adjust channel width (20 MHz for crowded areas).
- Optimize router placement and transmit power.
- Upgrade to devices supporting 5 GHz or 6 GHz bands for better performance.
If these steps don’t work, professional tools or services like TekDash can help diagnose and resolve deeper interference issues.

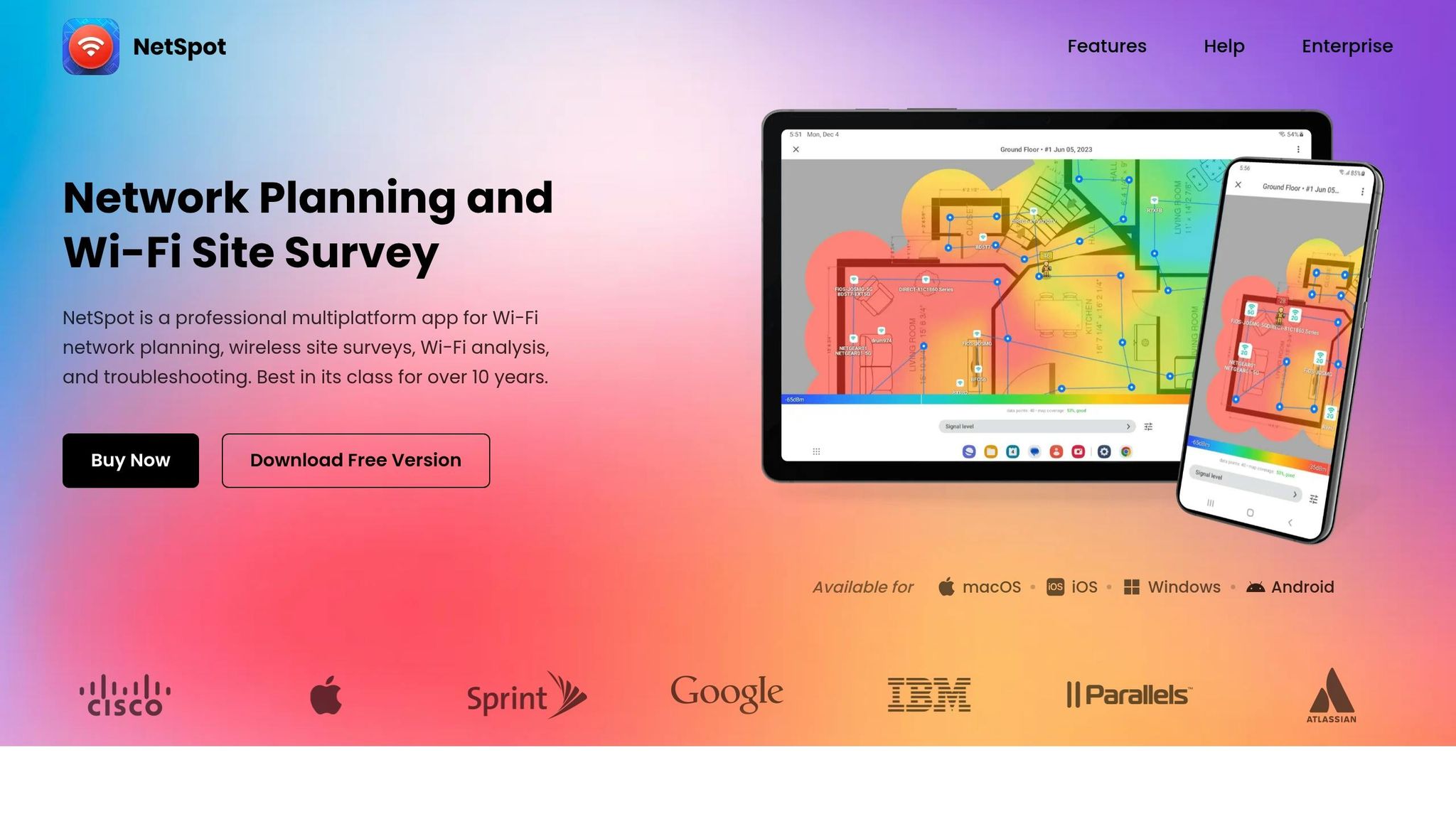

How to Use NetSpot WiFi Analyzer (And Fix Bad WiFi!)
sbb-itb-df22834
Common Causes of WiFi Channel Overlap
Now that we’ve covered the basics of WiFi channel overlap, let’s dive into the main reasons it happens. The root causes often involve interference, crowded networks, and incorrect settings.
Co-Channel and Adjacent Channel Interference
Co-channel interference (CCI) happens when multiple routers or access points use the same channel. While devices can share airtime through CSMA/CA protocols, this sharing slows down performance, even though it keeps the network functioning.
Adjacent channel interference (ACI), on the other hand, is a bigger headache. It occurs when devices operate on channels that partially overlap, such as Channel 1 and Channel 2. Unlike co-channel interference, devices on overlapping channels can’t coordinate their transmissions. This leads to signal issues like packet loss, retransmissions, and corrupted data.
"Adjacent channel interference creates far more problems than co-channel interference. When choosing between a busy non-overlapping channel or an empty overlapping channel, always select the busy non-overlapping option." - NetAlly
Overcrowded Networks in High-Density Areas
Living or working in a densely populated area? That’s a prime setup for WiFi channel overlap. Places like apartment complexes, office buildings, or urban neighborhoods often have dozens of networks competing for space. In some cases, you might detect 20 or more nearby networks, making it nearly impossible to avoid interference. Adding to the chaos, high transmit power settings can cause signals to spill into neighboring spaces, making transitions between access points clunky and unreliable.
Incorrect Channel Width and Frequency Selection
The allure of wider channels for faster speeds often comes with a catch: they take up more of the available spectrum, increasing overlap risks. For example, using a 40 MHz channel in the 2.4 GHz band can hog the entire spectrum, making interference almost unavoidable. Similarly, in the 5 GHz band, switching to 80 MHz channels slashes the number of non-overlapping options from 25 to just 5 or 6.
Wider channels also raise the noise floor - doubling the channel width (e.g., from 20 MHz to 40 MHz) adds 3 dB of noise. In crowded environments, this extra noise can outweigh the speed benefits, leading to more performance hiccups. These missteps in configuration often pave the way for WiFi channel overlap and its accompanying headaches.
Signs of WiFi Channel Overlap
WiFi channel overlap often shows itself through a frustrating combination: a strong signal but poor performance. You might see full bars on your device - possibly a solid -50 to -60 dBm signal - but still encounter endless buffering, frozen video calls, and painfully slow web browsing.
Another telltale sign is performance inconsistency. Your connection might work fine during the day but slow to a crawl in the evening or on weekends, when more neighbors are using their networks. You may even notice your phone dropping the WiFi connection and switching to cellular data, despite being right next to your router. Streaming services like Netflix or YouTube might buffer endlessly, and Zoom calls can stutter or drop entirely.
The root problem lies in signal corruption, which forces your network to retransmit data repeatedly. This wastes airtime and reduces overall efficiency. Julio Petrovitch, Product Manager at NetAlly, explains:
"Poor channel planning can cut network capacity in half. For businesses, this directly impacts operations through slower connections, dropped calls, and frustrated users".
These symptoms are clear indicators that interference is at play.
Slow Speeds and Connection Drops
Channel overlap doesn’t just slow you down - it can cut your speeds by 50% to 80% during busy times. Adjacent channel interference is a major culprit here. Unlike devices sharing the same channel (which take turns transmitting), overlapping channels lead to devices transmitting at the same time, corrupting data and causing constant packet loss.
This interference has a noticeable impact. For example, just a 3 dB rise in noise from overlapping channels can reduce WiFi 6E speeds by about 30%. Gaming becomes impossible due to latency spikes and jitter, file transfers grind to a halt, and even basic web browsing feels sluggish. These issues are often the direct result of poorly configured overlapping channels.
High Channel Usage and Collision Rates
Another sign of channel overlap is excessive channel usage. Channel utilization above 70% signals serious congestion. This happens when too many devices or networks compete for the same airtime, leading to slowdowns. WiFi analyzer tools can help you monitor channel activity in real-time.
The gap between your data rate (theoretical speed) and throughput (actual speed) also highlights the problem. If your device shows a high data rate but delivers poor throughput, overlapping channels could be choking your connection. Network management tools may also show high retransmission rates, a key indicator of packet collisions caused by overlapping channels. Unlike co-channel interference, where devices coordinate their transmissions, adjacent channel interference leads to devices "talking over each other", resulting in corrupted data. These collisions stem directly from mismanaged channel configurations.
How to Fix WiFi Channel Overlap

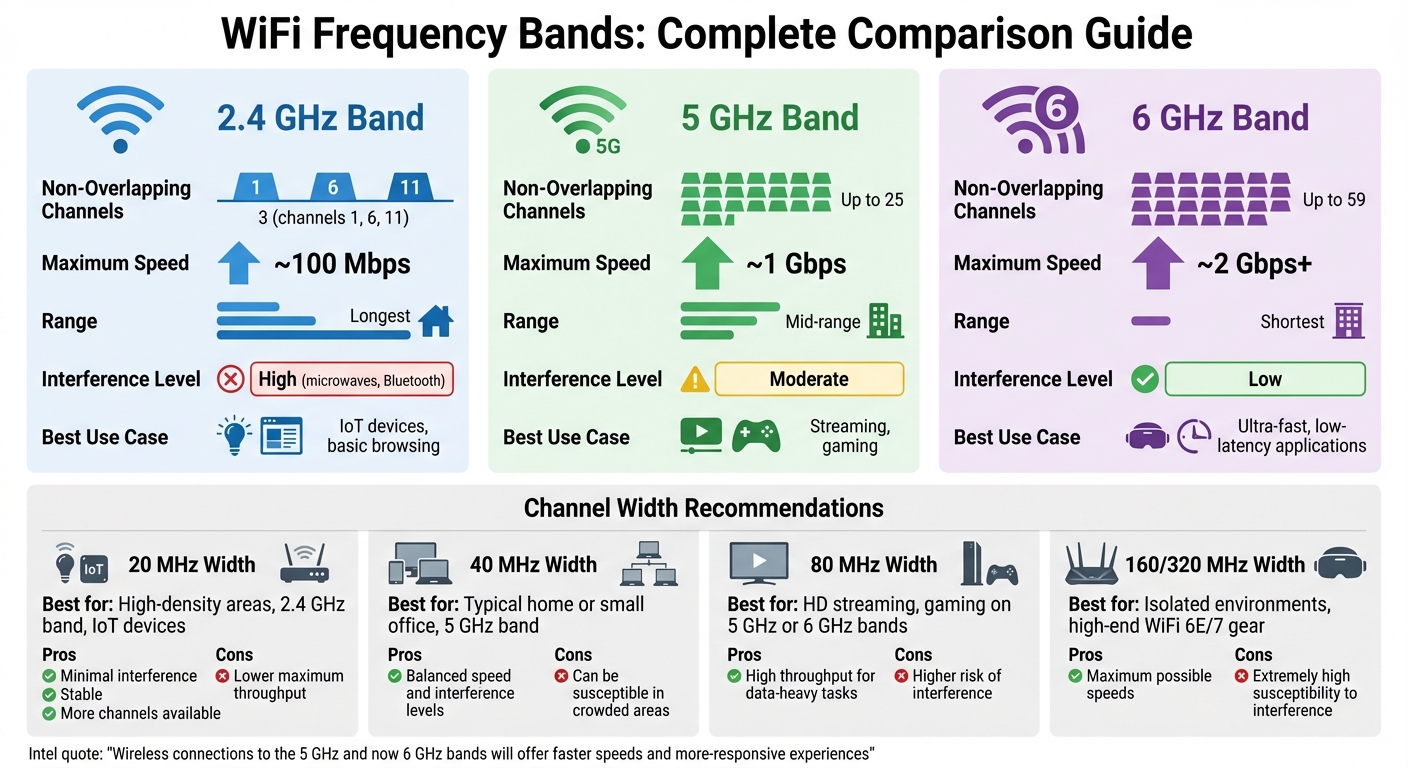

WiFi Frequency Bands Comparison: 2.4 GHz vs 5 GHz vs 6 GHz
If you've pinpointed WiFi channel overlap as the source of your connectivity issues, here are some practical steps to address the problem. With the right tools and a bit of patience, you can improve your network's performance.
Analyze and Map WiFi Channels
Start by using a WiFi analyzer like NetSpot, inSSIDer, or WiFi Analyzer to scan your network environment. Perform scans at different times of day to capture peak usage and identify hidden networks that might not broadcast their names but still occupy channel space. For a deeper dive, professional tools like NetAlly AirCheck G3 can detect networks that standard apps might miss. If your scans show clear channels but problems persist, consider non-WiFi interference sources like microwaves, baby monitors, or Bluetooth devices. A spectrum analyzer can help identify these culprits.
"A WiFi channel scan is essential for optimizing wireless networking. By understanding what a WiFi channel is, identifying interference, and choosing the best settings, you improve your network performance." - Julio Petrovitch, Product Manager at NetAlly
Once you have a clear map of active channels, you can proceed to manually select frequencies that avoid overlap.
Switch to Non-Overlapping Channels
To change your WiFi channel, access your router's settings through its IP address (common ones include 192.168.1.1 for brands like Linksys or TP-Link, and 192.168.0.1 for Netgear or D-Link). After logging in, navigate to the wireless settings menu.
For the 2.4 GHz band, stick to channels 1, 6, or 11 - these are the only non-overlapping options. Choose the channel with the least activity based on your analyzer's results. On the 5 GHz band, up to 25 non-overlapping channels are available, while the 6 GHz band provides up to 59 non-overlapping channels, making it an excellent choice if your devices support WiFi 6E.
| Frequency Band | Non-Overlapping Channels | Max Speed | Range | Interference Level | Best Use Case |
|---|---|---|---|---|---|
| 2.4 GHz | 3 (1, 6, 11) | ~100 Mbps | Longest | High (microwaves, Bluetooth) | IoT, basic browsing |
| 5 GHz | Up to 25 | ~1 Gbps | Mid-range | Moderate | Streaming, gaming |
| 6 GHz | Up to 59 | ~2 Gbps+ | Shortest | Low | Ultra-fast, low-latency |
Keep in mind that some 5 GHz channels (52–144) share space with radar systems. If your router detects radar on these Dynamic Frequency Selection (DFS) channels, it may switch frequencies automatically, causing brief interruptions.
Optimize Transmit Power and Coverage
Cranking your router's transmit power to the max might sound like a good idea, but it can actually worsen interference by extending your signal too far, creating more overlap. Instead, set the power to medium and adjust it gradually. Aim for smooth handoffs between access points, with about 30–50 feet of separation in typical office setups.
For multi-floor buildings, vary the transmit power on each floor to create a layered coverage pattern that reduces vertical interference. If your router supports dual-band functionality, enable band steering. This feature directs modern devices to the less-crowded 5 GHz or 6 GHz bands, leaving the 2.4 GHz band for legacy or IoT devices.
Once the power and coverage are optimized, fine-tune performance further by adjusting channel width.
Adjust Channel Width Based on Environment
The right channel width can make a big difference in performance. On the 2.4 GHz band, stick to 20 MHz channels in crowded areas to minimize interference. For the 5 GHz band, 40 MHz channels strike a good balance in homes or small offices, while 80 MHz channels work well in more isolated environments. The 6 GHz band can safely use wider channels like 80 MHz or 160 MHz due to its cleaner spectrum.
| Channel Width | Best Use Case | Pros | Cons |
|---|---|---|---|
| 20 MHz | High-density areas, 2.4 GHz band, IoT devices | Minimal interference, stable, more channels | Lower maximum throughput |
| 40 MHz | Typical home or small office, 5 GHz band | Balanced speed and interference levels | Can be susceptible in crowded areas |
| 80 MHz | HD streaming, gaming on 5 GHz or 6 GHz bands | High throughput for data-heavy tasks | Higher risk of interference |
| 160/320 MHz | Isolated environments, high-end WiFi 6E/7 gear | Maximum possible speeds | Extremely high susceptibility to interference |
"Wireless connections to the 5 GHz and now 6 GHz bands will offer faster speeds and more-responsive experiences for work and play compared to the legacy 2.4 GHz band." - Intel
Monitor Performance After Changes
After making these adjustments, test your network's performance. Run speed tests from different locations and at various times of day. Use your WiFi analyzer to confirm that channel utilization stays below 70%. Compare your actual speeds to the advertised rates - if there's still a noticeable gap, further interference might be at play.
Finally, simulate real-world usage by streaming videos, joining video calls, or transferring large files. If problems like buffering or dropped connections persist, revisit your channel settings or investigate for non-WiFi interference sources.
When to Contact TekDash for Professional Support
Persistent WiFi Issues and Complex Environments
If you've tried all the usual fixes and still face connectivity issues, it may be time to bring in the experts. Persistent problems like channel overlap or interference can be tough to diagnose without professional tools. One of the most frustrating scenarios is when your devices show full signal bars, but data transfer slows to a crawl or stops entirely. This often indicates high interference or channel saturation, which requires specialized diagnostics to resolve.
While mobile WiFi analyzers can help with basic troubleshooting, they often miss non-WiFi interference. Professionals rely on advanced tools like the AirCheck G3 or spectrum analyzers to uncover these hidden issues. For more complex setups - such as large homes, multi-story buildings, or office spaces - expert assistance is critical. Professionals can perform detailed site surveys, strategically place access points or mesh systems, and ensure proper configuration of enterprise-grade equipment. Projects involving extensive hardware upgrades, like Ethernet installations or network racks, also benefit from professional expertise to ensure everything is installed and functioning correctly.

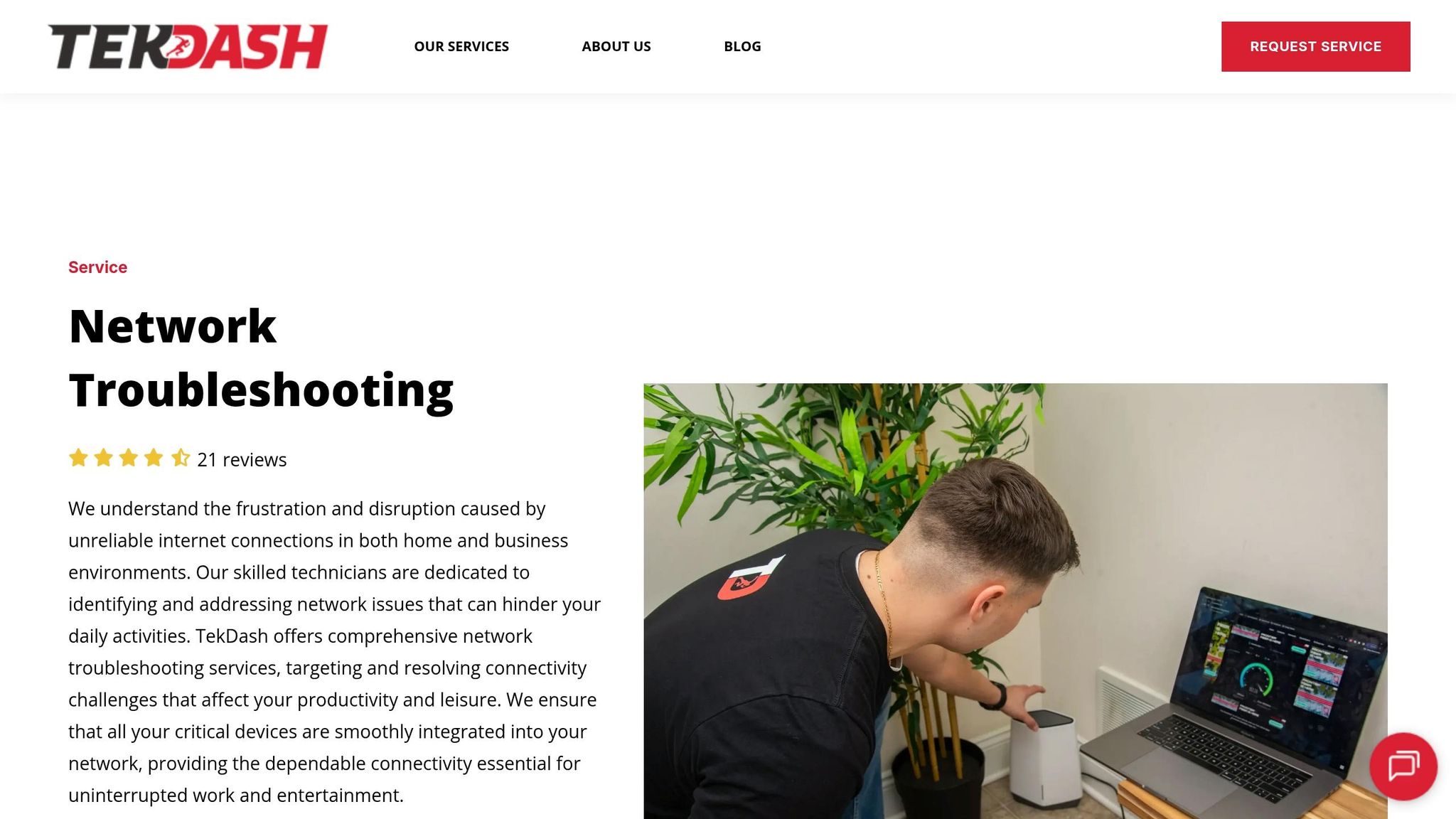

TekDash WiFi Services
When DIY solutions aren’t enough, TekDash offers a range of services designed to restore your network's performance. They provide both remote and on-site support, making it easy to get help no matter your situation. Remote support starts at $60 for the first 90 minutes, with additional hours billed at $40 each. On-site visits begin at $145 for the first 90 minutes, followed by $75 per additional hour. A 15% quality assurance fee is added to all services to ensure high-quality results and customer satisfaction.
For example, in 2025, a client in Alexandria, VA, turned to TekDash after considering several options. Lead Technician Greg and project coordinator Sean led a four-week home network overhaul, delivering a professional-grade setup with verified performance.
TekDash’s certified and insured technicians excel at identifying weak signals, dead zones, and interference sources through comprehensive site surveys. Beyond installation, they provide ongoing support to address new interference issues and keep your network running smoothly. They also specialize in smart home integration, ensuring devices like security cameras and thermostats connect seamlessly without overloading your network.
Conclusion
Key Takeaways
Improving your network performance doesn’t have to be complicated. Many WiFi issues, like channel overlap, can be resolved with a few targeted adjustments: switching to non-overlapping channels, narrowing channel width in crowded areas, and moving high-bandwidth devices to less congested frequency bands.
Poor channel planning can lead to slow connections, dropped calls, and frustrated users. Addressing these problems not only boosts speed but also ensures a more stable connection - no more video calls cutting out or endless buffering despite a strong signal. These simple steps highlight how crucial proper channel planning and regular monitoring are for maintaining a reliable network.
Keep in mind, wireless environments are always changing. A neighbor’s new router, a repositioned mesh node, or even peak usage times can alter interference patterns. Regular monitoring helps you stay ahead, keeping your network running smoothly.
For those dealing with persistent issues - especially in larger spaces like multi-story homes or offices - basic fixes might not be enough. Problems like non-WiFi interference often require specialized tools to identify. That’s where TekDash can help. Their certified technicians provide advanced diagnostics, including comprehensive site surveys, to uncover hidden issues and deliver effective, long-term solutions. Whether you need remote support or an on-site visit, TekDash offers the expertise to get your network back on track.
FAQs
Should I use Auto or manual WiFi channels?
For most people, automatic channel selection is the way to go. Modern routers are pretty good at picking the best channel by analyzing interference. That said, manual selection can be a game-changer if you’re dealing with a lot of congestion. Using a WiFi analyzer, you can identify less crowded channels - like 1, 6, or 11 on the 2.4 GHz band - for a smoother connection. If automatic settings are working fine, there’s no need to change anything. But in areas with heavy interference, switching to manual might give you a noticeable boost.
How do I know if interference is WiFi or something else?
To determine if interference is tied to WiFi, watch for clues like sluggish internet speeds, dropped connections, or erratic performance. Using tools like WiFi analyzers can reveal overlapping channels or competing devices, such as microwaves or Bluetooth gadgets, that might be causing issues. Additionally, physical obstacles like walls or metal objects can weaken the signal. These methods can help pinpoint whether WiFi interference is the culprit or if another factor is at play.
When should I contact TekDash for help?
If simple fixes like moving your router, changing channels, or upgrading your equipment aren’t solving your WiFi issues, it might be time to bring in the pros. TekDash can help tackle persistent problems like slow speeds, dropped connections, or interference that just won’t go away. Professional assistance is especially valuable for larger homes or business setups, where diagnosing the root cause and optimizing the network can make all the difference in ensuring a stable and reliable connection.
